OCS / HORECA POD COFFEE MACHINES

Home / Our products / / Our coffee machines / OCS HORECA POD Coffee Machines

COMPACT ESPRESSO MACHINES WITH A CONTEMPORARY DESIGN FOR ESE STANDARD POD OR SIMILAR


For OCS and HoReCa market

Automatic ejection of the pod at the end of the cycle due to the patented ACE system

Developed and manufactured in FRANCE

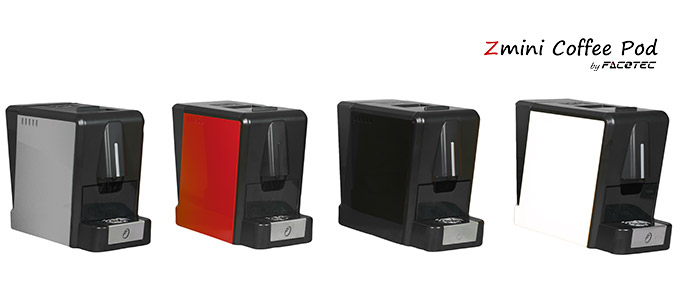

ULTRA COMPACT ESPRESSO MACHINE WITH CONTEMPORARY DESIGN

  • For ESE standard pod or similar
  • For OCS and HoReCa market
  • Automatic ejection of the pod at the end of the cycle due to the patented ACE system
  • Developed and manufactured in France

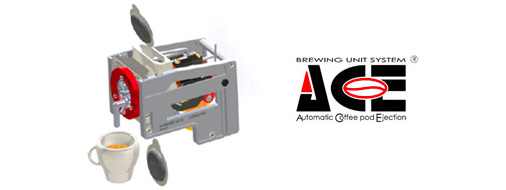

PATENTED SYSTEM ACE


  • Fully hydraulic brewing unit with automatic closing / opening
  • Automatic ejection of the pod at the end of the cycle
  • Adjusting the extraction pressure and the volume of the chamber according to the grind of the coffee and the thickness of the pod
  • Extractable main parts for adjustment, cleaning and maintenance



video


SOFT TOUCH SCREEN


CONTROL BY BACKLIT CAPACITIVE BUTTONS

Illuminated indicators:

  • Empty water tank
  • Used pods tank full
  • Technical need

Light Keys:

  • Short coffee
  • Long coffee

On-screen programming mode:

  • Coffee volume (short and long)
  • Coffee temperature
  • Descaling cycle




USED PODS TANK : 15 WITH COUNTER AND OPENWORK TANK TO DISPLAY THE CONTENTS

\


OTHERS FEATURES


  • Removable water tank: 1.4 L
  • Optional softener
  • Water level detection
  • Two cup heights (72 mm and 95 mm)
  • Heating element: one stainless steel thermoblock
  • One Pump of 20 bars
  • Energy saving: Auto power off
  • Coffee capacity: 30 coffees / hour

TECHNICAL DATA

Power consumption W 1200
Voltage V 220 / 240
Frequency Hz 50 / 60
Dimensions D x H x W 342 x 260 x 147
Weight Kg 4.7

COMPACT ESPRESSO MACHINE WITH CONTEMPORARY DESIGN

  • For ESE standard pod or similar
  • For OCS and HoReCa market
  • Automatic ejection of the pod at the end of the cycle due to the patented ACE system
  • Developed and manufactured in FRANCE

PATENTED SYSTEM ACE


  • Fully hydraulic brewing unit with automatic closing / opening
  • Automatic ejection of the pod at the end of the cycle
  • Adjusting the extraction pressure and the volume of the chamber according to the grind of the coffee and the thickness of the pod
  • Extractable main parts for adjustment, cleaning and maintenance


video


SOFT TOUCH SCREEN


CONTROL WITH BACKLIT CAPACITIVE KEYS.

Illuminated indicators:

  • Empty Water Tank
  • Used pod Tank full
  • Technical need

Light Keys:

  • Short coffee
  • Long coffee
  • Hot water



On-screen programming mode:

  • Coffee volume (short and long)
  • Hot water volume
  • Coffee temperature
  • Hot water temperature
  • Water network connection or water tank
  • Cleaning and descaling cycle


WATER TANK OR WATER NETWORK CONNECTION AS STANDARD EQUIPMENT


  • Removable water tank: 2,2 L
  • Optional softener
  • Water level detection
  • Water network connection as standard equipment


OTHER FEATURES


  • Hot water outlet
  • Two cup heights (85 mm and 115 mm)
  • Heating element: two thermoblocks for independent coffee and hot water control
  • Pump of 20 bars

USB port: program updates and device connection with application for various maintenance functions and programming settings :

  • pre-infusion on/off and configurable time and volume of pre-infusion
  • activation of water network connection or water tank
  • coffee/ hot water temperature and volume
  • programming used pods counter with possibility of direct ejection through the machine
  • activation and adjustment of coffee credit counter with or without blocking machine or display of negative value
  • setting the automatic standby
  • activation of cleaning and descaling mode
  • visualization of coffee counter total
  • visualization of coffee counter partial with reset
  • visualization of descaling counter
  • Used pod tank : 20 with pod counter or possibility of direct ejection
  • Capacity coffee: 30 coffees / hours
  • Hot water outlet

TECHNICAL DATA

Power consumption W 2300
Voltage V 220 / 240
Frequency Hz 50 / 60
Dimensions D x H x W 415 x 315 x 200
Weight Kg 7.1

COMPACT PROFESSIONAL ESPRESSO MACHINE
TWO INDEPENDENT BREWING UNIT TO MAKE ONE OR TWO COFFEES SIMULTANEOUSLY

  • For ESE standard pod or similar

For HoReCa market

Automatic ejection of the pod/capsule at the end of the cycle due to the patented ACE system

Developed and manufactured in FRANCE

PATENTED SYSTEM ACE


  • Fully hydraulic brewing unit with automatic closing / opening
  • Automatic ejection of the pod at the end of the cycle
  • Adjusting the extraction pressure and the volume of the chamber according to the grind of the coffee and the thickness of the pod
  • Extractable main parts for adjustment, cleaning and maintenance

vidéo


COLOR TOUCH SCREEN


Touch key control:

  • Short coffee
  • Long coffee
  • Hot water
  • Steam

A Digital display :

  • Pressure
  • Used pod Tank full
  • Technical need
  • Coffee credit



On-screen programming mode :

  • Volume and coffee temperature setting (independent for each brewing unit)
  • Activation and setting of pre-infusion (volume and time)
  • Volume setting of hot water
  • Setting the duration and pressure of the steam (electronic sensor)
  • Possibility of turning off the water and steam outlets for community use
  • Activation and adjustment of automatic rinse cycles (period / volume)
  • Setting the used pod tank counter with possibility of direct ejection through the machine
  • Setting and activation of rinsing, cleaning and descaling mode
  • Activation and adjustment of coffee credit counter with or without blocking machine or display negative value
  • Activation and setting of standby ( independent for each brewing unit and boiler)
  • Visualization of coffee counter total and partial
  • Visualization of cleaning and descaling cycles
  • Setting of the language used and brightness of the screen
  • Protected settings by password


OPERATION OF INDEPENDENT BREWING UNITS WITH SEPARATE ADJUSTMENTS





OTHER FEATURES


  • Two coffee modes : short or long
  • Hot water and steam outlets
  • Two cup heights (85mm and 140 mm)
  • Heating element : one thermoblocks per brewing unit and one 3 liters boiler for hot water and steam
  • One pump of 20 bars per brewing unit
  • Energy saving : auto power off
  • Optional adjustable mixed hot water
  • Used pod tank : with pod counter or possibility of direct ejection
  • Capacity coffee : 60 coffees / hour
  • Water network connection as standard equipment
  • Optional 5 liters water tank

TECHNICAL DATA

Power consumption W 1900 / 2300
Voltage V 220 / 240
Frequency Hz 50 / 60
Dimensions D x H x W 540 x 440 x 350
Weight Kg 34

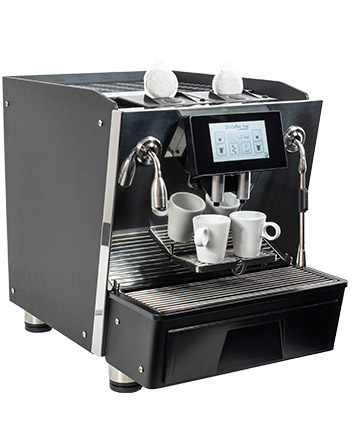

PROFESSIONAL ESPRESSO MACHINE
THREE INDEPENDENT BREWING UNIT TO MAKE ONE, TWO OR THREE COFFEES SIMULTANEOUSLY

  • For ESE standard pod or similar
  • For HoReCa market
  • Automatic ejection of the pod at the end of the cycle due to the patented ACE system
  • Developed and manufactured in France

PATENTED SYSTEM ACE


  • Fully hydraulic brewing unit with automatic closing / opening
  • Automatic ejection of the pod at the end of the cycle
  • Adjusting the extraction pressure and the volume of the chamber according to the grind of the coffee and the thickness of the pod
  • Extractable main parts for adjustment, cleaning and maintenance

video


écran tactile en couleur


Touch key control:

  • Shortcoffee
  • Long coffee
  • Hotwater
  • Steam

A Digital display:

  • Pressure
  • Used pods tank full
  • Technicalneed
  • Coffee credit



On-screen programming mode:

  • Volume and coffee temperature setting (independent for each brewing unit)
  • Activation and setting of pre-infusion (volume and time)
  • Volume setting of hot water
  • Setting the duration and pressure of the steam (electronic sensor)
  • Possibility of turning off the water and steam outlets for community use
  • Activation and adjustment of automatic rinse cycles (period / volume)
  • Setting the used pods tank counter with possibility of direct ejection through the machine
  • Setting and activation of rinsing, cleaning and descaling mode
  • Activation and adjustment of coffee credit counter with or without blocking machine or display negative value
  • Activation and setting of standby (independent for each brewing unit and boiler)
  • Visualization of coffee counter total and partial
  • Visualization of cleaning and descaling cycles
  • Setting of the language used and brightness of the screen
  • Protected settings by password


OPERATION OF INDEPENDENT BREWING UNITS WITH SEPARATE ADJUSTMENTS





OTHER FEATURES


  • Hot water and steam outlets
  • Two cup heights (85mm and 140 mm)
  • Heating element: one stainless steel thermoblock per brewing unit and one 3 liters stainless steel boiler for hot water and steam
  • One pump of 20 bars per brewing unit
  • Energy saving: auto power off
  • Capacity coffee: 90 coffees / hour
  • Water network connection as standard equipment
  • Optional adjustable mixed hot water

TECHNICAL DATA

Power consumption W 2900/3400
Voltage V 220 / 240
Frequency Hz 50 / 60
Dimensions D x H x W 540 x 440 x 460
Weight Kg 39
